Reusable Human Body Temperature Sensor For Medical Monitoring Equipment

Name: Reusable Human Body Temperature Sensor For Medical Monitoring Equipment
Brand: Jingpu Brand
Price: 0.1 USD

China Reusable Human Body Temperature Sensor For Medical Monitoring Equipment wholesale

Brand Name : Jingpu Brand

Model Number : JP400

Certification : CE,ROHS,ISO

Place of Origin : Hefei, Anhui, China

MOQ : 1000

Price : USD 0.1-5 /PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2-7days

Packaging Details : Carton packing

Way to install : Inserting

Sensing way : Resistence

Output signal type : Analog Type

Material : Ceramics

Measuring the dielectric : Temperature

IP code : IP64

Transport package : Carton Packing

Appearance : White

Warranty : 2 years

After-sale service : Quality Assurance

Customization : Yes

Operating Temperature : 0℃~50℃

Resistence Value : Custom

B Value : Custom

Shipping : Shipping, Air, or Express

Wire : PVC, , Enamel Insulation

Contact Now

Reusable Human Body Cavity Temperature Sensor for Medical Monitoring Equipment

Brief Instruction:

Medical human body cavity temperature sensor ( esophgeal/ rectal temperature probe) be used for human body cavity temperature measurement, Used for the patient monitors. The sensor be composed of epoxy bead and Mono audio plug 6.3mm. Meanwhile, we also accept the customized plug or connector. The rated resistance value 2.252kΩ or 10kΩ. The measured temperature tolerance within ±0.1℃, compatible for replacement YSI400 series sensor.

Features:

Epoxy encapsulation

Reusability

Temperature tolerance

(25~45)℃±0.1℃

Operating temperature range: 0℃~50℃

Application:

Suitable for medical monitoring equipment

Structure and Dimensions:(Unit:mm)

Reusable Human Body Temperature Sensor For Medical Monitoring Equipment

NO.	Name	Material Specification	QTY.	Remarks
1	Chip	NTC	1	/
2	Probe	Epoxy Resin	1	gray
3	Wire	24AWG/1C OD3.1 Shielded round sheath wire	1	gray
4	Plug	6.3MP-φ6.3*31-50	1	gray

Standard packing (inner packing): 1 pcs/polybag

Operation Notice

1.Application:Temperature measure ；　

2.The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.

3.Avoid excessive heat shock,The hot air blow should beat least 30mm to the probe in case heat shrink protection tube need to be attached.

4.Storage Temperature 0℃～50℃,30%~80%RH；Avoid in a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.

5.According to the structure of Glass coating NTC thermistor, when end user install, to avoid the epoxy head subjected too much tensile force and bending force from the lead wire,The lead wire shall be controlled at a bending point or a force point on a lead wire 6mm or less below the sealing head.So as not to hurt the chip, resulting in resistance drifting and even open circuit, especially when the component is heated.

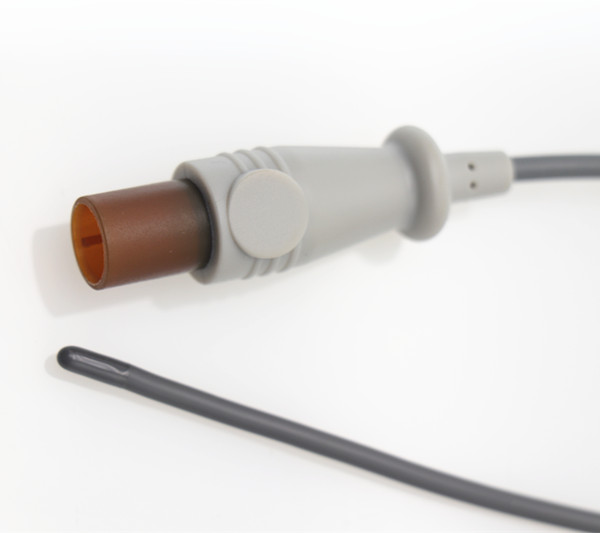

Product Picture:

Reusable Human Body Temperature Sensor For Medical Monitoring Equipment
